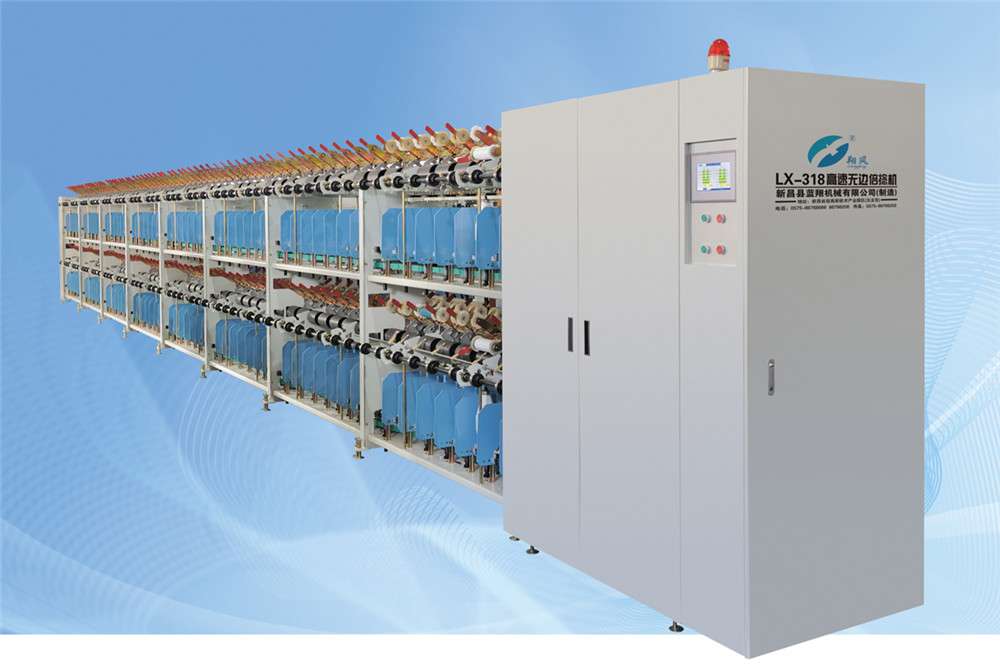

línea de flor de nylon de níquel más torsión con máquina de torsión doble

La máquina se utiliza para la serie de filamentos de fibra química.
  • Description

Performance

1.The machine is adopt servo motor and high strength belt, instead of mechanical cam, convenient maintenance, low power consumption and low noise. The guide rod is controlled by precise guide rail, it realized the precise electronic winding, stepless adjustable to ensure the good forming and unwinding of the bobbin.
2.The electronical system is adopt synchronous motor transducers technology, servo control system adopted to winding. The quality of yarn improved by real-time monitoring process speed.It can not only control the transmission precision,but also reduce the energy consumption, that caused unwinding easily.
3.It is more convenient operation by touch screen.
4.Using 320mm straight bobbin, maximum take-up capacity is 1.8kg.



details-12

details-22

Technical Specification

Type double sides double layer
Spindle Number 32*8section=256 spindles
Spindle Gauge 225 MM
Max. Spindle Speed 13000 RPM
Twist Range 60-3000 T/M
Twist S or Z
Bobbin Size L240-320*Φ42*Φ38
Winding Bobbin Size Φ175*Φ57.5*Φ62
Process Adjustment operation by touch screen
Speed Adjustment converter speed-regulated
Take-up Type servo drive, program control
Winding Type servo drive, real-time feed-back
Tension Control tension ball and tension ring are join use
Winding Angle Adjust at will
Main Motor Power 5.5 KW*2 + 1.3KW*2
Machine Size 16570*840*1850 mm

FAQ

1. How can I get a quotation?
Leave us a message with your purchase requests and we will reply you within one hour on working time. And you may contact us directly by Trade Manager or any other instant chat tools in your convenient. Mail: lanxiangmachine@foxmail.com

2. Can I get a sample to check the quality?
We are glad to offer you samples for test. Leave us a message of the item you want and your address.

3. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C
Language Spoken: English, Chinese

4. Are you factory or trading company?
We are a factory and with Export Right. It means factory + trading.

5. What's the payment terms?
We accept T/T (30% as deposit, and 70% before delivery) and other payment terms.

Structure diagram

Structure-diagram
